1.1.   Introduction

Draugiem.lv integrated applications allow developers to embed an external page as separate section of draugiem.lv, so that visually it looks and feels almost the same as other draugiem.lv sections.

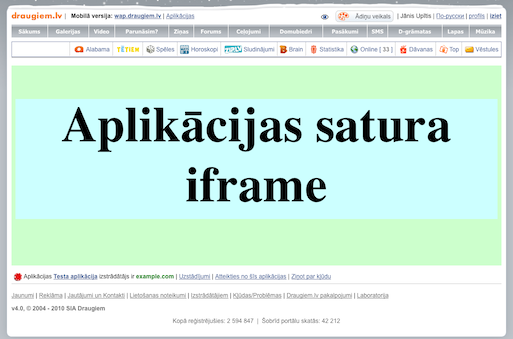

Applications are integrated into draugiem.lv layout by using an iframe solution. Content is placed into 1080 pixels wide iframe window that opens an URL provided by the developer. The initial height of the iframe can be set in the application settings (default value 700 pixels). Iframe can also be resized dynamically by using Javascript API. Each application is given a short address in form https://www.draugiem.lv/app_name/. Short address can be chosen when the application is created.

If you specify a mobile iframe address in the application settings, then the application is also available at https://m.draugiem.lv/[app_name].

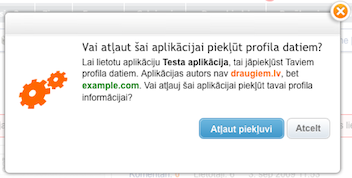

First time when the user opens application, he has to agree to give his personal information to third party developers. After agreement, iframe window is opened and user can start to use the application.

After approval process, application receives user's API key that gives it a limited access to user's data and ability to post messages to user activity feed or profile news (if the application has permission to use these functions).

Next times when the user opens the application, he can use it directly, without further approval.

If the user wants to discontinue use of the application, he can delete if from his profile. After deletion, application no more has access to the user's data.

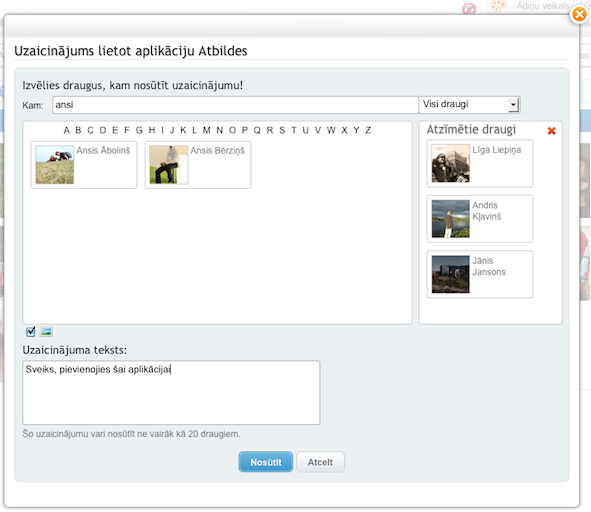

Applications also can use an invitation system that allow users to invite their friends to join the application.

If the application offers paid services it has to use payment API provided by draugiem.lv, to ensure payments. Developer together with SIA Draugiem signs an agreement that determines the revenue share between both parties.

1.2.   Acquiring authorization code

Similar with draugiem.lv Passport, integrated applications also use an authorization code to access user's API key. After the user has agreed to give his data to third party, iframe window is opened with these GET parameters added:

After receiving authorization code, the application has to perform authorize API call (Section User authentication) to acquire user's API key that is necessary for further API requests. Authorization code doesn't change during the session so if the application receives the same authorization code again (e.g. when the user reloads the iframe), application does not have to perform another authorize request. If application receives authorization code that is different from the previous, it must perform another authorize request - this situation means that another user has logged in draugiem.lv and started to use the application from the same computer.

1.3.   Passing additional parameters to the address in iframe

By default iframe window opens address that is given in the application settings (with authorization parameters added). However, it is possible to open another address by adding extra GET parameters or directory path to the short URL.

Example: application's short URL is https://www.draugiem.lv/myapp/, and content URL - https://example.com/app/. It is possible to change the address in the iframe in following ways:

The URL that is opened in the iframe will always contain authorization parameters as well.

1.4.   Accessing the application

Newly created integrated application can be accessed only by its owner and draugiem.lv employees. Other users will see a notification that application is in development mode and can't be accessed. Application owner can provide up to 30 of his friends a permission to access application as developers and assign up to 10 friends as application administrators. Developers can use the application even when it is under development or is closed. Administrators are provided with full control over the application except deleting it.

When application's development comes to an end, developers can submit the application to draugiem.lv Labs. On this phase application can be accessed and tested by users who are members of the draugiem.lv Labs team. A discussion group where developers and testers can discuss application's issues, is also created.

When application is finished, it can be published in draugiem.lv application section. Published application can be used by any of the users of draugiem.lv (however, it is possible to limit the access to a certain age). Developers also have an option to temporarily close the application for maintenance.

Keep in mind that developed application does not guarantee publishing it in draugiem.lv. So, in order to avoid confusion, it is highly recommended to consult with draugiem.lv whether the application suits for publishing before development.

Integrated application can also work as Draugiem.lv Passport application. This feature allows you to display the same application both in draugiem.lv or on its own domain outside draugiem.lv.

1.5.   Some suggestions for developers

• After authorization, user profile data should be kept within the session instead of requesting them repeatedly in every request.
• If user data are displayed in many places in the page, they should be cached on application's side to prevent unnecessary load both on draugiem.lv and application's servers.
• If your application uses PHP, it is best to use our provided PHP library for the integration.
• If you need to contact us, please write email to api@draugiem.lv,
• Ensure that nobody can access your application's API key.
• To increase security, you can add IP limit to your servers in the application settings. Never perform API requests from the client side (Javascript or Flash) - that wil make your API key exposed to everyone.

1.6.   Session cookie creation problems in Safari browser

Safari browser with the default security settings does not allow to set cookies in the iframe if the parent domain is different from the iframe domain. Cookies are allowed only after the user has performed an action within iframe. This can lead to problems in creation of user session within the iframe since the cookie that is created in the first request won't be stored. Developers have to ensure that session ID gets passed to the second request even when the cookie fails to be set.

This limitation can be avoided by posting a form with Javascript to simulate user's input.

If you use our provided PHP library, you can use CookieFix method, to avoid this limitation.

1.7.   Session cookie creation problems in Internet Explorer browser

Similar with Safari, IE users with Medium level of Privacy setting can face problems with cookie creation inside the iframe. To overcome this limitation, the application has to send this HTTP header to the user (code example in PHP):

header('P3P:CP="IDC DSP COR ADM DEVi TAIi PSA PSD IVAi IVDi CONi HIS OUR IND CNT"');

If you use our provided PHP library, you can use CookieFix method, to avoid this limitation.

2.1.   API requests

To acquire data or perform other actions with draugiem.lv API, application server has to perform HTTP POST or GET requests to draugiem.lv server, providing necessary request parameters according to API specification. Parameters can be passed as HTTP GET, POST or COOKIE variables (however, POST is recommended).

API request URL depends on chosen data format. Draugiem.lv API provides following formats:

Examples provided by this documentation will show API responses in XML format. Our provided PHP library </applications/dev/php_en/> uses PHP serialized format.

API request always must contain parameter action that contains required API action, and parameter app that contains the API key of the application (API key is created when you create the application and it is used to identify the application that performs API requests).

Almost always API request will contain parameter apikey, that identifies draugiem.lv user that has authorized the application.

Example: To obtain basic profile info in XML format (application API key - 52967e99b3c11a755e7635901c23c0cf, user API key - 208d970441dd5f3e87b965fedabd0738), you have to perform this request:

https://api.draugiem.lv/xml/?app=52967e99b3c11a755e7635901c23c0cf&apikey=208d970441dd5f3e87b965fedabd0738&action=userdata

According to this request, server will respond with data structure in chosen format:

<?xml version="1.0" encoding="UTF-8"?>
<draugiem>
        <users>
                <user uid="491171">
                        <name>Jānis</name>
                        <surname>Bērziņš</surname>
                        <age/>
                        <adult>1</adult>
                        <img>https://i1.ifrype.com/profile/491/171/v3/sm_491171.jpg</img>
                        <sex>M</sex>
                </user>
        </users>
</draugiem>

2.2.   Error codes

If application has performed invalid API request or any other error has occured, API response will contain error code and description.

XML example:

<?xml version="1.0" encoding="UTF-8"?>
<draugiem>
        <error code="150">Access denied</error>
</draugiem>

PHP serialized format example:

a:1:{s:5:"error";a:2:{s:11:"description";s:13:"Access denied";s:4:"code";i:150;}}

JSON example:

{"error":{"description":"Access denied","code":150}}

Possible error codes:

2.3.   User data

If API request requests information related with user data, API answer will contain block users with basic profile information of users. Every user element contains attribute uid that uniquely identifies draugiem.lv user and can be used to create relations between user and other objects.

XML example:

<?xml version="1.0" encoding="UTF-8"?>
<draugiem>
        ...
        <users>
                <user uid="491171">
                        <name>Jānis</name>
                        <surname>Bērziņš</surname>
                        <age/>
                        <adult>1</adult>
                        <img>https://i1.ifrype.com/profile/491/171/v3/sm_491171.jpg</img>
                        <sex>M</sex>
                </user>
                ...
        </users>
</draugiem>

PHP example:

a:1:{s:5:"users";a:1:{i:3342174;a:7:{s:3:"uid";i:3342174;s:4:"name";s:6:"Jānis";s:7:"surname";s:9:"Liepiņš";s:3:"age";b:0;s:5:"adult";i:0;s:3:"img";b:0;s:3:"sex";s:1:"F";}}}

JSON example:

{"users":{"3342174":{"uid":3342174,"name":"J\u0101nis","surname":"Liepi\u0146\u0161","age":false,"adult":0,"img":"https://i1.ifrype.com/profile/491/171/v3/sm_491171.jpg","sex":"M"}}}

Every user data item contins these values:

To get user profile image in different sizes, simply replace in URL part sm_ with another prefix:

Example: If profile image URL is https://i1.ifrype.com/profile/491/171/v3/sm_491171.jpg, then URL of middle sized version of this image will be https://i1.ifrype.com/profile/491/171/v3/m_491171.jpg.

2.4.   Notifications about deleted users

If you fill field Delete status callback URL with your URL in application settings, draugiem.lv will notify you about users that have deleted themself from your application or deleted their profile entirely.

That allows you to remove user information from you database or perform other actions that are necessary to perform if user ceases to use the application.

Our server will call your URL with these parameters added:

Example:

Application with ID 1234 has configured address https://example.com/delete_profile/ as delete callback URL. When user with ID 12345 deletes from application, draugiem.lv server will call URL https://example.com/delete_profile/?status=delete&uid=12345&app=123

Response to this request must contain only text OK, otherwise draugiem.lv system will try to resend status report.

3.1.   User authentication process (request authorize)

Request allows application to acquire user's API key that is neccessary to perform other API requests on behalf of the user. The request also returns user's basic profile information so that no additional requests are needed to get this data.

Request parameters:

Response will contain these parameters:

User's API key allows application to access user's data via API wthout repeating authorization. After authorization application will be added to the My Applications section of the user's profile. From there user will be able to discontinue application's permission to access his data.

Response also contains user's profile information according to the format described in section User data.

Example response:

<?xml version="1.0" encoding="UTF-8"?>
<draugiem>
        <apikey>09797abfe8e5ea53fd857cc372e3a6f5</apikey>
        <uid>491171</uid>
        <language>lv</language>
        <users>
                <user uid="491171">
                        <name>Jānis</name>
                        <surname>Bērziņš</surname>
                        <age>21</age>
                        <adult>1</adult>
                        <img>https://i1.ifrype.com/profile/491/171/v3/sm_491171.jpg</img>
                        <imgi>https://i1.ifrype.com/profile/491/171/v3/i_491171.jpg</imgi>
                        <imgm>https://i1.ifrype.com/profile/491/171/v3/m_491171.jpg</imgm>
                        <imgl>https://i1.ifrype.com/profile/491/171/v3/l_491171.jpg</imgl>
                        <sex>M</sex>
                </user>
        </users>
</draugiem>

To be able to access user's data again, application has to store the apikey value and use it in all further API requests.

If application has lost user's API key or if the user has deleted if from the profile, authorization process can be repeated. User's API key can change if the user change his password or deletes application from the profile and joins repeatedly.

3.2.   Getting user data of specific users (request userdata)

This request allows to get basic profile information of specific draugiem.lv users who have authorized the application. This request doesn't require user's API key, just the application's key.

Request parameters:

If request contains parameter ids, response will contain profile information of requested users according to format described in section User data. Only information about users that are registered in application will be returned (if the user has deleted from the application, data will not be available anymore)

If ids parameter is not given, then API will return information about user who owns the API key passed in apikey parameter according to format described in section User data.

The order of returned user data is not strictly defined.

Example response:

<?xml version="1.0" encoding="UTF-8"?>
<draugiem>
        <users>
                <user uid="491171">
                        <name>Jānis</name>
                        <surname>Bērziņš</surname>
                        <age>21</age>
                        <adult>1</adult>
                        <img>https://i1.ifrype.com/profile/491/171/v3/sm_491171.jpg</img>
                        <imgi>https://i1.ifrype.com/profile/491/171/v3/i_491171.jpg</imgi>
                        <imgm>https://i1.ifrype.com/profile/491/171/v3/m_491171.jpg</imgm>
                        <imgl>https://i1.ifrype.com/profile/491/171/v3/l_491171.jpg</imgl>
                        <type>User_Default</type>
                        <sex>M</sex>
                </user>
                <user uid="64428">
                        <name>Elīna</name>
                        <surname>Ozoliņa</surname>
                        <age>25</age>
                        <adult>1</adult>
                        <img>https://i8.ifrype.com/profile/064/428/v3/sm_64428.jpg</img>
                        <imgi>https://i1.ifrype.com/profile/491/171/v3/i_64428.jpg</imgi>
                        <imgm>https://i1.ifrype.com/profile/491/171/v3/m_64428.jpg</imgm>
                        <imgl>https://i1.ifrype.com/profile/491/171/v3/l_64428.jpg</imgl>
                        <type>User_Business</type>
                        <sex>F</sex>
                </user>
        </users>
</draugiem>

In case of using Draugiem.lv passport, the user data may also contain official draugiem.lv pages ( www.draugiem.lv/lapas ) data instead of the regular user data. To determine if this is a regular user or page, you need to check the value in the type parameter. Currently 2 values are possible:

• User_Default - ordinary user
• User_Business - business page

3.3.   Getting list of application users (request app_users)

Request allows to get a list of all users that use the application. This request doesn't require user's API key, just the application's key.

Request parameters:

If request does not contain parameter show with value ids, response will contain element users, filled with information according to format described in section User data. Element users will have an attribute total that contains total number of users.

Example response (show=ids is not given):

<?xml version="1.0" encoding="UTF-8"?>
<draugiem>
        <users total="2">
                <user uid="491171">
                        <name>Jānis</name>
                        <surname>Bērziņš</surname>
                        <age>21</age>
                        <adult>1</adult>
                        <img>https://i1.ifrype.com/profile/491/171/v3/sm_491171.jpg</img>
                        <imgi>https://i1.ifrype.com/profile/491/171/v3/i_491171.jpg</imgi>
                        <imgm>https://i1.ifrype.com/profile/491/171/v3/m_491171.jpg</imgm>
                        <imgl>https://i1.ifrype.com/profile/491/171/v3/l_491171.jpg</imgl>
                        <sex>M</sex>
                </user>
                <user uid="64428">
                        <name>Elīna</name>
                        <surname>Ozoliņa</surname>
                        <age>25</age>
                        <adult>1</adult>
                        <img>https://i8.ifrype.com/profile/064/428/v3/sm_64428.jpg</img>
                        <imgi>https://i1.ifrype.com/profile/491/171/v3/i_64428.jpg</imgi>
                        <imgm>https://i1.ifrype.com/profile/491/171/v3/m_64428.jpg</imgm>
                        <imgl>https://i1.ifrype.com/profile/491/171/v3/l_64428.jpg</imgl>
                        <sex>F</sex>
                </user>
        </users>
</draugiem>

If request contains parameter show with value ids, response will contain element userids, that will hold a list of draugiem.lv user IDs. Element users will have an attribute total that contains total number of users.

Example response (show=ids is given):

<?xml version="1.0" encoding="UTF-8"?>
<draugiem>
        <userids total="45">
                <uid>64428</uid>
                <uid>491171</uid>
                <uid>1524905</uid>
                <uid>134564</uid>
                <uid>234561</uid>
        </userids>
</draugiem>

3.4.   Getting number of application users (request app_users_count)

Request allows to get count of currently registered users in the application.

Request parameters:

Response contains element usercount, that contains the number of users that have authorized the application.

Example response:

<?xml version="1.0" encoding="UTF-8"?>
<draugiem>
        <usercount>312</usercount>
</draugiem>

3.5.   Getting list of user's friends that use the application (request app_friends)

Request allows to get information about user's friends that use the application.

Request parameters:

If request does not contain parameter show with value ids, response will contain element users, filled with information according to format described in section User data. Element users will have an attribute total that contains total number of friends.

Example response (show=ids is not given):

<?xml version="1.0" encoding="UTF-8"?>
<draugiem>
        <users total="2">
                <user uid="491171">
                        <name>Jānis</name>
                        <surname>Bērziņš</surname>
                        <age>21</age>
                        <adult>1</adult>
                        <img>https://i1.ifrype.com/profile/491/171/v3/sm_491171.jpg</img>
                        <imgi>https://i1.ifrype.com/profile/491/171/v3/i_491171.jpg</imgi>
                        <imgm>https://i1.ifrype.com/profile/491/171/v3/m_491171.jpg</imgm>
                        <imgl>https://i1.ifrype.com/profile/491/171/v3/l_491171.jpg</imgl>
                        <sex>M</sex>
                </user>
                <user uid="64428">
                        <name>Elīna</name>
                        <surname>Ozoliņa</surname>
                        <age>25</age>
                        <adult>0</adult>
                        <img>https://i8.ifrype.com/profile/064/428/v3/sm_64428.jpg</img>
                        <imgi>https://i1.ifrype.com/profile/491/171/v3/i_64428.jpg</imgi>
                        <imgm>https://i1.ifrype.com/profile/491/171/v3/m_64428.jpg</imgm>
                        <imgl>https://i1.ifrype.com/profile/491/171/v3/l_64428.jpg</imgl>
                        <sex>F</sex>
                </user>
        </users>
</draugiem>

If request contains parameter show with value ids, response will contain element userids, that will hold a list of draugiem.lv user IDs. Element users will have an attribute total that contains total number of friends.

Example response (show=ids is given):

<?xml version="1.0" encoding="UTF-8"?>
<draugiem>
        <userids total="45">
                <uid>64428</uid>
                <uid>491171</uid>
                <uid>1524905</uid>
                <uid>134564</uid>
                <uid>234561</uid>
        </userids>
</draugiem>

3.6.   Getting number of user's friends that use the application (request app_friends_count)

Request allows to get the number of active user's friends that also use the application.

Request parameters:

Response contains element friendcount, that contains the number of user's friends that have authorized the application.

Example response:

<?xml version="1.0" encoding="UTF-8"?>
    <draugiem>
            <friendcount>16</friendcount>
    </draugiem>

3.7.   Getting list of user's online friends that use the application (request app_friends_online)

Pieprasījums ļauj iegūt informāciju par aplikācijas lietotāja draugiem, kas izmanto šo pašu aplikāciju un šobrīd ir ienākuši draugiem.lv portālā. Pieprasījums ir pieejams tikai draugiem.lv integrētajām aplikācijām un darbojas tikai laikā, kad lietotājs pats ir ienācis portālā.

Request parameters:

If request does not contain parameter show with value ids, response will contain element users, filled with information according to format described in section User data.

Example response (show=ids is not given):

<?xml version="1.0" encoding="UTF-8"?>
<draugiem>
        <users>
                <user uid="491171">
                        <name>Jānis</name>
                        <surname>Bērziņš</surname>
                        <age/>
                        <adult>1</adult>
                        <img>https://i1.ifrype.com/profile/491/171/v3/sm_491171.jpg</img>
                        <sex>M</sex>
                        <friends_only_msg></friends_only_msg>
                </user>
                <user uid="64428">
                        <name>Elīna</name>
                        <surname>Ozoliņa</surname>
                        <age>16</age>
                        <adult>0</adult>
                        <img>https://i8.ifrype.com/profile/064/428/v3/sm_64428.jpg</img>
                        <sex>F</sex>
                        <friends_only_msg></friends_only_msg>
                </user>
        </users>
</draugiem>

If request contains parameter show with value ids, response will contain element userids, that will hold a list of draugiem.lv user IDs.

Example response (show=ids is given):

<?xml version="1.0" encoding="UTF-8"?>
<draugiem>
        <userids>
                <uid>64428</uid>
                <uid>491171</uid>
                <uid>1524905</uid>
                <uid>134564</uid>
                <uid>234561</uid>
        </userids>
</draugiem>

3.8.   Getting list of user's online friends (request app_all_friends_online)

Request allows you to get information about your friends who are currently online.

Request parameters:

If request does not contain parameter show with value ids, response will contain element users, filled with information according to format described in section User data.

Example response (show=ids is not given):

<?xml version="1.0" encoding="UTF-8"?>
<draugiem>
        <users>
                <user uid="491171">
                        <name>Jānis</name>
                        <surname>Bērziņš</surname>
                        <age/>
                        <adult>1</adult>
                        <img>https://i1.ifrype.com/profile/491/171/v3/sm_491171.jpg</img>
                        <sex>M</sex>
                        <friends_only_msg>1</friends_only_msg>
                </user>
                <user uid="64428">
                        <name>Elīna</name>
                        <surname>Ozoliņa</surname>
                        <age>16</age>
                        <adult>0</adult>
                        <img>https://i8.ifrype.com/profile/064/428/v3/sm_64428.jpg</img>
                        <sex>F</sex>
                        <friends_only_msg>1</friends_only_msg>
                </user>
        </users>
</draugiem>

If request contains parameter show with value ids, response will contain element userids, that will hold a list of draugiem.lv user IDs.

Example response (show=ids is given):

<?xml version="1.0" encoding="UTF-8"?>
<draugiem>
        <userids>
                <uid>491171</uid>
                <uid>64428</uid>
        </userids>
</draugiem>

3.9.   Getting friendship status between two users (request check_friendship)

Request allows to check if two application users are friends.

Request parameters:

• If both uid and uid2 values are given, friendship status among these two users will be returned.
• If uid2 balue is not given, but apikey value is provided, friendship status between API key owner and user uid will be returned.
• Response contains element status, that has value OK if there is a friendship between these two users.
• If there is no friendship, status value will be NOT_FRIENDS.
• If any of provided users is not registered application's user, status value will be NOT_USERS.

Example response:

<?xml version="1.0" encoding="UTF-8"?>
<draugiem>
        <status>OK</status>
</draugiem>

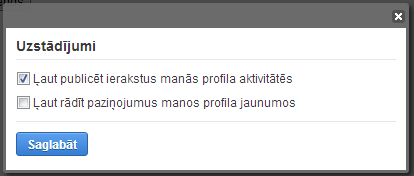

3.10.   Posting entries to user's profile activity feed (request add_activity)

Request allows to add entry with a link to user's profile activity feed (entry will be visible to all of his friends)

This feature is not enabled by default. To get permission for your application to post items to activity feed, contact api@draugiem.lv and tell us about your application and what kind of activities it will create. Integrated applications during the development phase are allowed to post activities in test mode (they will be visible only to the developers). To continue posting activities after publishing, they have to be enabled by draugiem.lv staff.

Activity link must point to the same domain that is configured as application URL in application settings.

Application's icon will be shown next to the created entry. Only one activity per day can be created for each user.

Activities must comply with these principles:

• Activity informs about actual user's action in the application.
• Activity system can't be used for advertising.
• Before starting to add new types of activities, it is highly recommended to consult with us before.
• For integrated applications activity URL has to contain address that will be displayed in the iframe, not the application address in draugiem.lv - it will automatically converted to internal address. Address opened in iframe can contain directory path and GET variables, but might not work if it contains file name with common extensions (php/css/jpg etc.) will not work

If application will create activities that do not follow the rules, we can deny application to post new activities.

Request parameters:

• If activity was successfuly created, response will contain element status with value OK.

• If application has no permission to post activities or if the user has blocked activities from this application,

  API will respond with error 150 (Access denied).

• If daily activity limit for user has been reached, API will respond with error 107 (Max activity limit for this user today reached)

Example response:

<?xml version="1.0" encoding="UTF-8"?>
<draugiem>
        <status>OK</status>
</draugiem>

3.11.   Posting notifications to user's profile news feed (request add_notification)

Request allows to add notification with a link to user's profile news feed (it will be visible only to the user)

This feature is not enabled by default. To get permission for your application to post inotifications, contact api@draugiem.lv and tell us about your application and what kind of notifications it will create. Integrated applications during the development phase are allowed to post notifications in test mode (they will be visible only to the developers). To continue posting notifications after publishing, they have to be enabled by draugiem.lv staff.

Notification link must point to the same domain that is configured as application URL in application settings.

Application's icon will be shown next to the created entry. Application can create up to 5 notifications per day for every user, no sooner than an hour after previous one.

Notifications must comply with these principles:

• Notification informs about something that has happened with user's profile in the application. It is recommended that the notification link goes to a specific place in the application if it is possible.
• Notifications can't be used to advertise application with no reason.
• Before starting to add new types of notifications, it is highly recommended to consult with us before.
• For integrated applications notification URL has to contain address that will be displayed in the iframe, not the application address in draugiem.lv - it will automatically converted to internal address. Address opened in iframe can contain directory path and GET variables, but might not work if it contains file name with common extensions (php/css/jpg etc. will not work)

If application will create notifications that do not follow the rules, we can deny application to post new notifications.

It is possible to show both notifications that come from a specific user or notifications that are displayed as created by the application.

Important: Remember that notification is displayed to user that owns the API key that is used in request.So in order to send notification to user that currently is not online, application has to store user's API key for offline use.

Request parameters:

• If notification was successfuly created, response will contain element status with value OK.

• If application has no permission to post notifications or if the user has blocked notifications from this application,

  API will respond with error 150 (Access denied).

• If daily notification limit for user has been reached, API will respond with error 107 (Max activity limit for this user today reached)
• If there is less then an hour since last added notification, request will return error 130 (Spam/Flood detected)

Example response:

<?xml version="1.0" encoding="UTF-8"?>
<draugiem>
        <status>OK</status>
</draugiem>

3.12.   Checking user's draugiem.lv session state (request session_check)

Request allows integrated applications to check if user's draugiem.lv session that user used to open the application is still active.

Applications should not check in every request - it is recommended to do it no more often then every 3-5 minutes.

Request parameters:

API response contains element status. If its value is OK, user's session is still valid.

If the value is FAILED, user's session is no more valid and application should log out the user.

Example response:

<?xml version="1.0" encoding="UTF-8"?>
<draugiem>
        <status>OK</status>
</draugiem>

3.13.   Getting application status information (request app_status)

Request allows to get statistical information about application's status.

Request parameters:

Response will contain these information fields:

Example response:

<?xml version="1.0" encoding="UTF-8"?>
<draugiem>
        <status>
                <users>159552</users>
                <users24h>42872</users24h>
                <online>1340</online>
                <api_rq>33.25</api_rq>
                <activities>15</activities>
                <notifications>8</notifications>
        </status>
</draugiem>

3.14.   Get invitations sent to the application user (request invitations)

The request allows to get information about invitations sent to the user to use this application.

Request parameters:

Response to this request will contain "invitation" elements that include the following values:

Example response:

<?xml version="1.0" encoding="UTF-8"?>
<draugiem>
<invitations>
        <invitation>
                <inviter>12345</inviter>
                <invite_extra></invite_extra>
                <sent>1290899622</sent>
                <deleted>1303814320</deleted>
                <accepted>0</accepted>
        </invitation>
        <invitation>
                ..
        </invitation>
</invitations>
</draugiem>

3.15.   Get invitations sent by the application user (request sent_invitations)

The request allows to get information about user-sent invitations to use this application.

Request parameters:

Response to this request will contain "invitation" elements that include the following values:

Example response:

<?xml version="1.0" encoding="UTF-8"?>
<draugiem>
<invitations>
        <invitation>
                <user>12345</user>
                <invite_extra></invite_extra>
                <sent>1290899622</sent>
                <deleted>1303814320</deleted>
                <accepted>0</accepted>
        </invitation>
        <invitation>
                ..
        </invitation>
</invitations>
</draugiem>

4.1.   Vertical resizing of the iframe

To enable automatic resizing of the iframe, when the page is opened, you need to create Javascript variable draugiem_container that contains ID of the DOM element that includes all the content of the page. Height of this element will be used to calculate necessary iframe height. If you also create variable draugiem_container_offset, its value will be added to the height of the draugiem_container element.

<script src="https://ifrype.com/applications/external/draugiem.js" type="text/javascript"></script>
<script type="text/javascript">
                var draugiem_container = 'main_div';
</script>

To change iframe height without reloading page (e.g. after Ajax requests), you need to call Javascript function draugiemResizeIframe(). If the function is called without arguments, height will be calculated based on height of the element specified by draugiem_container value. It is also possible to pass required height in pixels to this function directly as first argument.

<script src="https://ifrype.com/applications/external/draugiem.js" type="text/javascript"></script>

<div id="main_div" style="height:700px">test</div>

<script type="text/javascript">
        var draugiem_container = 'main_div';//Element that determines height
        draugiemResizeIframe(); //resizes to 700px

        var draugiem_container_offset = 50;//Height offset
        draugiemResizeIframe(); //Resizes to 750px

        draugiemResizeIframe(800); //Resizes to 800px
</script>

It is very important to correctly adjust iframe size to fit all the content - if the iframe will be too small, users will not be able to see all content.

m.draugiem.lv iframe width and height changes automatically (within all available free screen).

4.2.   Displaying draugiem.lv modal window

It is possible to display modal window with your own content if you call function draugiemWindowOpen(address, width, height, callback).

Function takes four arguments:

<script src="https://ifrype.com/applications/external/draugiem.js" type="text/javascript"></script>
<script type="text/javascript">
        //Opens 300x200px modal window
        draugiemWindowOpen('https://example.com/modal_window.php',300,200, function(){alert('Closed!');});
</script>

To close the modal window, call draugiemWindowClose() function. Window can also be closed manually by the user.

m.draugiem.lv width and height argument values can be set in pixels (example: "200") or percents (example: "50%")

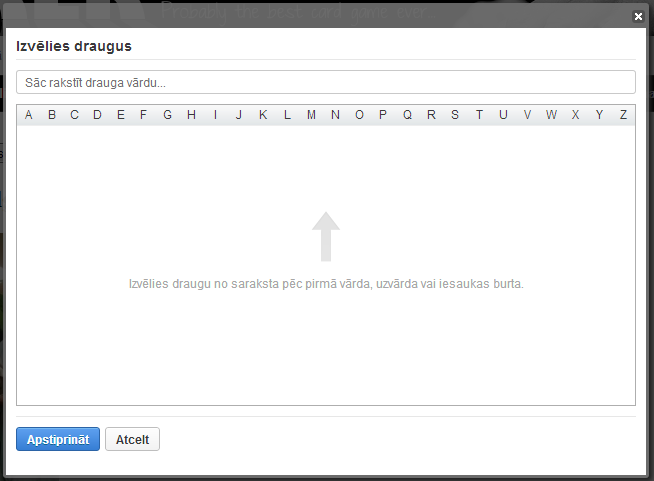

4.3.   Sending invitations to user's friends

By calling Javascript function draugiemSendInvite(text, extra, callback), application can open window that lets user to invite some of his friends to join the application. Invitation feature is available only for approved and published applications - others can be accessed only by developers.

Function can take three optional parameters:

Invite dialog allows user to select which friends to send the invitation to.

<script src="https://ifrype.com/applications/external/draugiem.js" type="text/javascript"></script>
<script type="text/javascript">
        draugiemSendInvite('Hi, please join this game! :)');//Show invite dialog
</script>

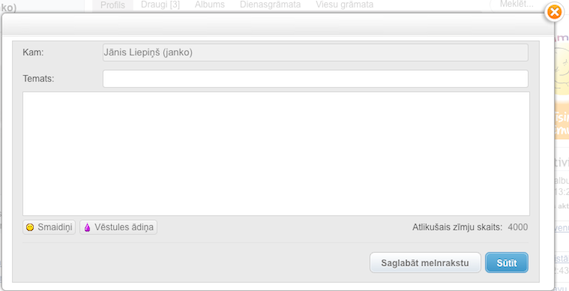

4.4.   Sending message to draugiem.lv user

Calling Javascript function draugiemSendMessage(uid, topic, text, callback), will open a window that allows user to compose message to another draugiem.lv user.

Function has 4 arguments: :uid: ID of person that will receive the message. :topic: message topic :text: message text :callback: optional argument, Javascript callback function that will be called when the user closes the modal window

<script src="https://ifrype.com/applications/external/draugiem.js" type="text/javascript"></script>
<script type="text/javascript">
        draugiemSendMessage(999999, 'Hello', 'How are you?', function(){alert('Closed!');});
</script>

4.5.   Sharing links in draugiem.lv/say

Javascript function draugiemSay(title, url, titlePrefix, text, callback) open window that allows user to share a link with his friends.

Function takes four arguments, first two of them are mandatory:

<script src="https://ifrype.com/applications/external/draugiem.js" type="text/javascript"></script>
<script type="text/javascript">
        draugiemSay('Picture of a day','https://www.draugiem.lv/mana_aplikacija/','Interesting','This is great!');
</script>

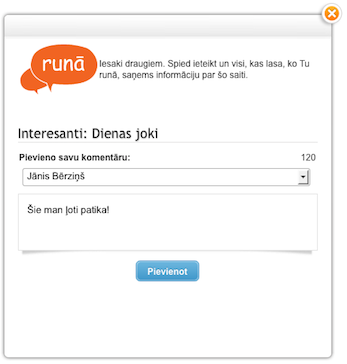

Published post will look like this:

m.draugiem.lv this function currently is not available.

4.6.   Scrolling up content

In page applications, there is often a situation where the content of the application causes the scrollbar to appear, but only a small portion of the content remains after user actions. In this situation, you can use the draugiemScrollTop() function to scroll to the top of page.

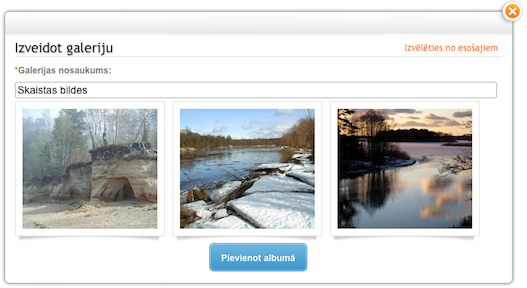

4.7.   Posting images in user's gallery

Javascript function draugiemGalleryAdd(title, url, description, callback), allows to open a window that lets user to add to his gallery images provided by application.

Function takes two arguments:

<script src="https://ifrype.com/applications/external/draugiem.js" type="text/javascript"></script>
<script type="text/javascript">
        draugiemGalleryAdd('Funny cats',['https://example.com/img/1.jpg', 'https://example.com/img/2.jpg']);
</script>

It is NOT ALLOWED to use this function in page applications!

m.draugiem.lv this function currently is not available.

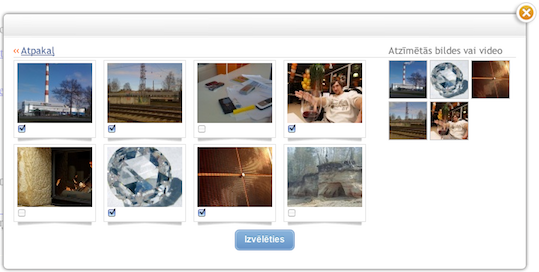

4.8.   Selecting images from user gallery

By using Javascript function draugiemGalleryChoose(count, callback), it is possible to open a window that allows the user to select images from his draugiem.lv galleries and pass them to the application.

Function takes two arguments:

<script src="https://ifrype.com/applications/external/draugiem.js" type="text/javascript"></script>
<script type="text/javascript">
        draugiemGalleryChoose(1,function(obj){if(obj){alert(obj.thumb)}});
</script>

Information about every selected image is passed to the function provided by the callback parameter as Javascript object

{
        pid:78443473 //Picture ID
        thumb:'https://i3.ifrype.com/gallery/ff57173f4/443/473/sm_78443473.jpg', //Small picture (100x100)
        medium:'https://i3.ifrype.com/gallery/f2af6acf/443/473/m_78443473.jpg', //Medium picture (215px wide)
        large:'https://i3.ifrype.com/gallery/5feacb47/443/473/l_78443473.jpg' //Large picture (max 710px width/height)
}

If parameter count contained value 1, one such object will be returned. If a larger limit was provided, return value will contain a data structure that contains one or more such objects, depending on the number of the selected pictures.

m.draugiem.lv this function currently is not available.

4.9.   Opening the application authorization window

For some integrated applications, it is possible to enable the ability to display content to the user before approving the application access to your data. In such cases, the user can view the content of the application anonymously, but the application cannot access the user before he approved access to them. When an application first needs to access user data, it can call access confirmation window by calling the JavaScript function draugiemAuthorize().

To enable your application to display content before authorization, contact api@draugiem.lv.

<script src="https://ifrype.com/applications/external/draugiem.js" type="text/javascript"></script>
<script type="text/javascript">
        draugiemAuthorize({ redirect:'/app-url/?success', followPage:true }, callback);
</script>

When developing page applications draugiemAuthorize() you can set an additional parameter followPage: true, which will add an additional option in the authorization window to start following the page where the application is placed. By default, the user will be prompted to follow the page. In addition to this parameter, {'redirect', 'app-url/?success'} may be passed. Setting this parameter will redirect the user to the following address after successful authorization: https://draugiem.lv/app-url/?success. It is possible to set the redirect: false parameter and as a second argument to set the callback function, and the user authorization data will be returned to a function of type object containing a session identifier and permissions (see permissions types 4.10). This way provides access to user data without reloading the page. If the user closes the window, the callback function will be passed an argument with data type boolean and value false.

m.draugiem.lv this function currently is not available.

4.10.   Opening the application permissions window

Using the draugiemSettings(callback) function, it is possible to open the window that is displayed to the user the first time the application is opened. In the window the user has the possibility to change the access rights of the application to his data.

Function takes one argument:

Possible types of permits:

m.draugiem.lv this function currently is not available.

4.11.   Open the Friends Selection window

Using the draugiemFriends(maxlength,callback) JavaScript function, it is possible to open a window that prompts the user to select a certain number of users.

Function takes two arguments:

m.draugiem.lv this function currently is not available.

6.1.   Creating paid service

To start using paid services, application first has to enable payment API. To enable payments for application, please contact api@draugiem.lv.

After the API has been enabled, it becams possible to create paid services through the application's administration panel.

When a service is being created, these information fields need to be filled:

Paid service administration panel will display service ID that has to be used to create payment transactions via API.

It is recommended that one application creates no more than 12 paid services to keep payment statistics charts and graphs simplier.

6.2.   Creating a transaction

To create payment transaction and retrieve its ID, application has to perform this API call:

Request parameters:

Response will contain transaction ID (element id) and the URL of the payment page that has to be displayed to the user (element link).

Example response:

<?xml version="1.0" encoding="UTF-8"?>
<draugiem>
        <transaction>
                <id>1935</id>
                <link>https://www.draugiem.lv/services/iframe.php?id=1935</link>
        </transaction>
</draugiem>

URL that is received in the link element, has to be displayed to the user (as iframe, popup window or modal window that is opened with draugiemWindowOpen function). Recommended size of the payment window is at least 350x400 pixels. Opened window contains all the information that is needed to the user to finish the payment.

Received id value has to be stored by the application - because transaction success can be determined by this value.

To avoid generating unnecessary amount of unused transaction IDs, it is recommended to create the transaction only when the user has decided that he wants to pay.

6.3.   Determining transaction status

After the user has been successfuly charged, draugiem.lv server will call payment status callback URL provided by the application with these HTTP GET parameters added:

Application must respond with exact text OK to this request, otherwise draugiem.lv system will assume that the report was not delivered and will try to deliver it repeatedly (up to 20 attempts with increasing time intervals). Application has to respond with OK even if it receives report for transaction that is already processed or is not found. The only situation when the application shouldn't respond with OK is when the application has technical difficulties to process the payment (e.g. the database is down), and it wants the report to be resent later.

If status notification was not received, it is possible to check the status manually by using API:

Response will contain one of these statuses:

Example response:

<?xml version="1.0" encoding="UTF-8"?>
<draugiem>
   <status>OK</status>
</draugiem>
